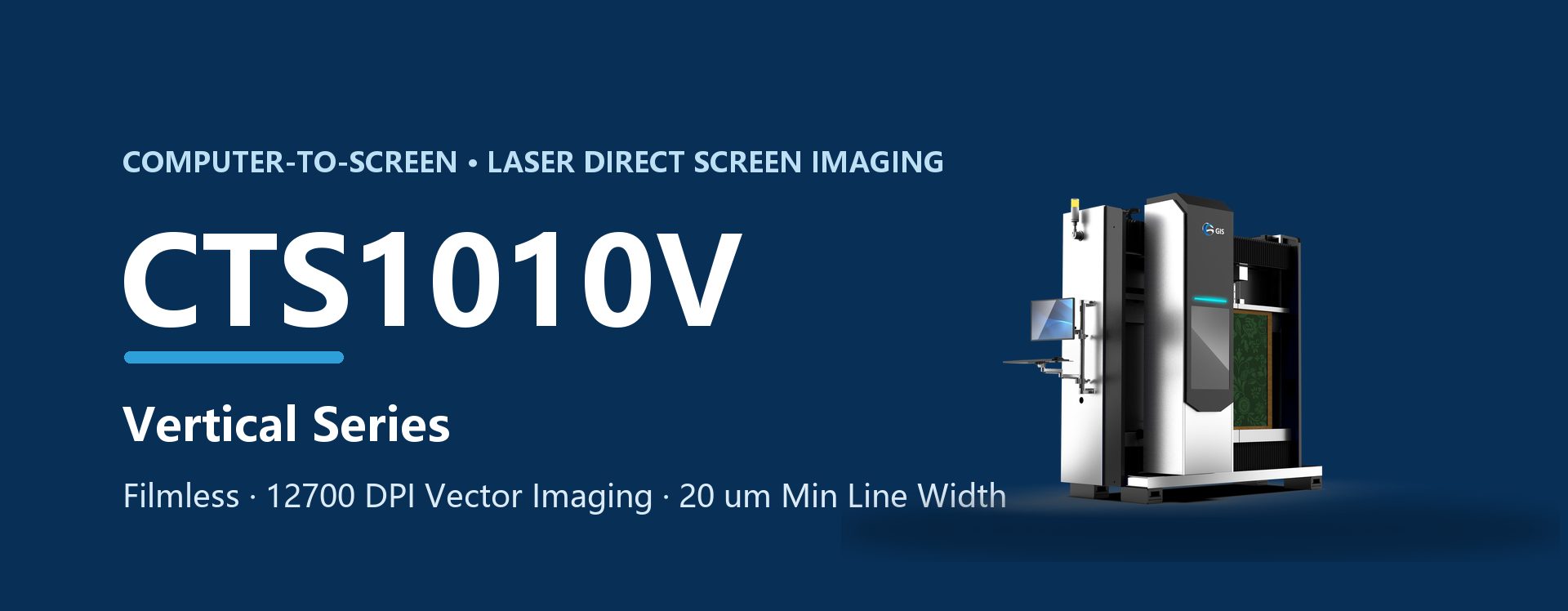

COMPUTER-TO-SCREEN

CTS1010V

Vertical Series

Space-saving vertical design with built-in illumination and automation-ready loading — high output in a compact footprint.

12700 DPI · PDF Vector Imaging20 μm Line · 3% Halftone DotEOM up to 900 μm

1000x1000 mm

Max Frame Size

400x400 mm

Min Frame Size

900x900 mm

Exposure Area

1750x1080x1970 mm

Dimensions

Key Features

KEY FEATURES

Automation Ready

Optional auto loading/unloading for seamless production line integration

Built-in Illumination

Integrated lighting for easy screen inspection during operation

Safety Mat Stop

Pressure-sensitive mat triggers instant stop for operator safety

Space-Saving Design

Vertical orientation minimizes floor footprint without sacrificing frame size

TECHNICAL SPECIFICATIONS

Item	Value
Model	CTS1010V
Max Frame	1000x1000 mm
Min Frame	400x400 mm
Exposure Area	900x900 mm
Dimensions (WxDxH)	1750x1080x1970 mm
Weight	1250 kg
Imaging System	DMD DLP Digital Imaging Technology
Emulsion Thickness (EOM)	10 - 900 um (SBQ-specified emulsion, incl. mesh)
Exposure Time	120 - 240 sec/m² (@ #350 yellow mesh)
Image Resolution	1270 / 2540 / 5080 / 12700 DPI (PDF vector)
Halftone Frequency	Up to 133 - 200 LPI (200 LPI @ 2540 DPI)
Focus System	Dynamic Auto-Focus (real-time Z-axis)
File Formats	1-bit TIFF, Gerber, PDF Vector
Laser Type	UV Laser, wavelength 405 +/- 5 nm
Laser Power	20W / 25W / 30W (optional)
Frame Thickness	25 - 40 mm (custom available)
Registration Pins	M&R Tri-loc / ROQ pin / MHM pin
Work Environment	Yellow-light room; 22 +/- 2 degC
Power Supply	Single-phase 220V, 50/60 Hz, 4 kW (varies by model)
Compressed Air	0.5 MPa
