High-rigidity steel structure keeps large frames stable, covering screen printing from 600x800 mm up to 2500x4200 mm.
Integrated high-strength steel chassis for rigidity and vibration resistance
Premium HIWIN linear guides for smooth, precise XY motion
Integrated water-cooling system for stable laser performance
TI DMD digital micro-mirror device for ultra-sharp dot imaging
| Item | Value |
|---|---|

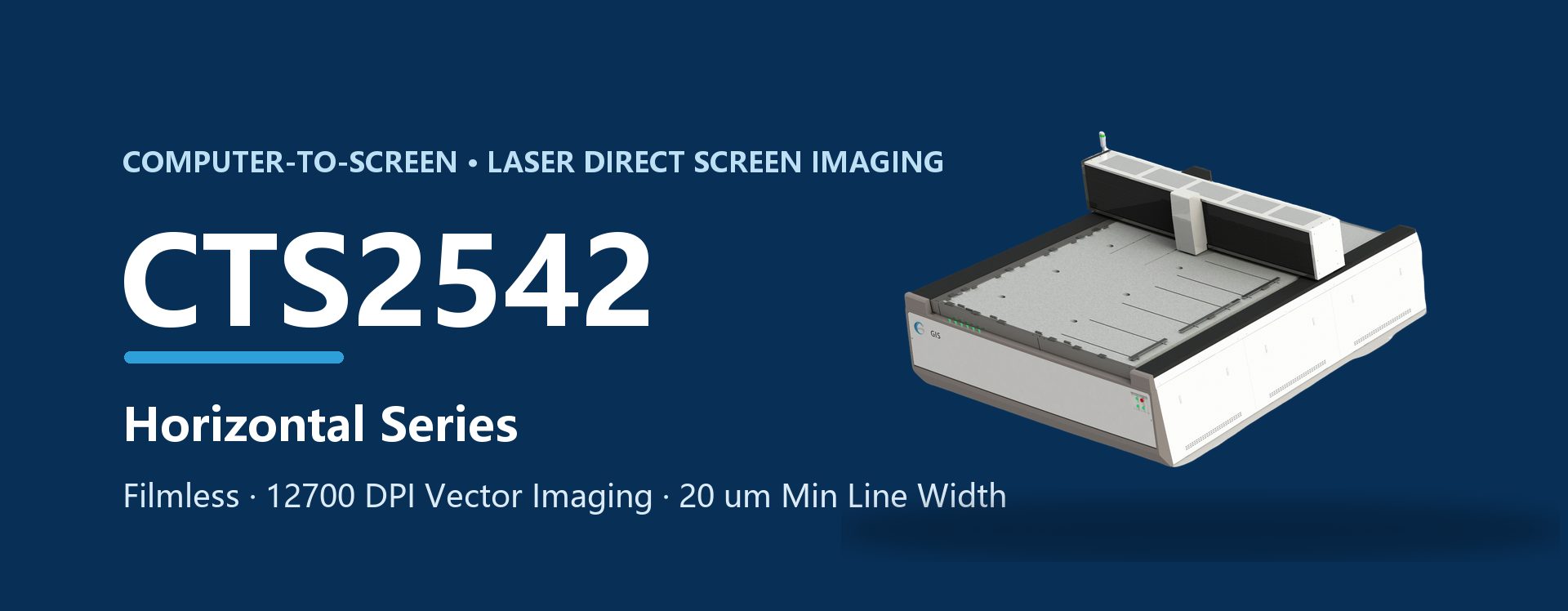

| Model | CTS2542 |
| Max Frame | 2500x4200 mm |
| Min Frame | 700x700 mm |
| Exposure Area | 2500x3500 mm |
| Dimensions (WxDxH) | 5550x3650x1680 mm |
| Weight | 6000 kg |
| Imaging System | DMD DLP Digital Imaging Technology |
| Emulsion Thickness (EOM) | 10 - 900 um (SBQ-specified emulsion, incl. mesh) |
| Exposure Time | 120 - 240 sec/m² (@ #350 yellow mesh) |
| Image Resolution | 1270 / 2540 / 5080 / 12700 DPI (PDF vector) |
| Halftone Frequency | Up to 133 - 200 LPI (200 LPI @ 2540 DPI) |
| Focus System | Dynamic Auto-Focus (real-time Z-axis) |
| File Formats | 1-bit TIFF, Gerber, PDF Vector |
| Laser Type | UV Laser, wavelength 405 +/- 5 nm |
| Laser Power | 20W / 25W / 30W (optional) |
| Frame Thickness | 25 - 40 mm (custom available) |
| Registration Pins | M&R Tri-loc / ROQ pin / MHM pin |
| Work Environment | Yellow-light room; 22 +/- 2 degC |
| Power Supply | Single-phase 220V, 50/60 Hz, 4 kW (varies by model) |
| Compressed Air | 0.5 MPa |
