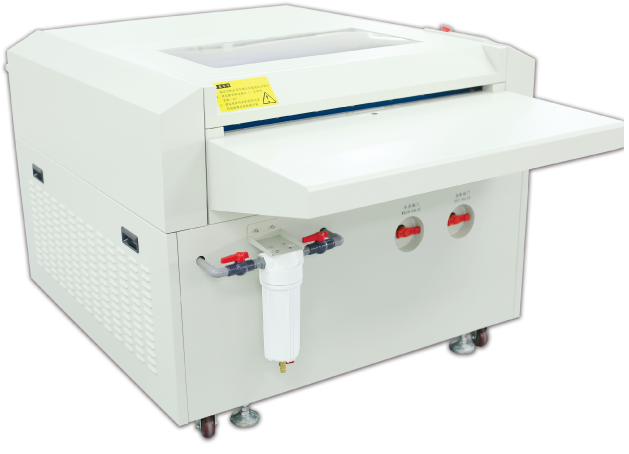

The XZ series developer consists of a development, washing, adhesive, and drying system. It is accurately controlled by the central processor. After boot, the developer can be automatically adjusted to a set temperature and maintain a constant temperature. The front sensor automatically detects the incoming state and controls the machine to enter the working mode from standby mode. Each system works according to the preset parameter s. Can automatically maintain the pre-set development temperature, development time, dr ying temperature and other development data, with the development consumption automatic supplement and antioxidation automatic supplement system, to maintain the development liquid state stability. At the same time, the XZ series developer has the automatic injection function of developing liquid, improving work efficiency and eliminating the inconvenience of manual operation.

XZThe XZ series developer consists of a development,
washing, adhesive, and drying system.
It is accurately controlled by the central processor.
After boot, the developer can be automatically adjusted to a set temperature and maintain a constant temperature.

Model
835
840
845
850
Plate CTP Plate
Width of plate
880mm
1100mm
1250mm
1500mm
Thickness of plate 0.12mm-0.4mm
Handling speed of plate 14-65s
Set Temperature of developer 15℃-35℃
Developer liquid heating speed 0.3℃/min
Cooling speed of developer liquid 0.2℃/min
Developer Liquid Replenishment System Auto-supplement, boot supplement
Developer slot volume
45L
55L
65L
75L
Glue volume Recycle
Drying temperature setting 30℃-65℃
Developer roller speed 50-120rpm
Washing roller speed 50-120rpm
Power ±0.3℃
Equipment size Single Phase220VAC/ 50 ~60HZ /4Kw
Weight
1300x3000
1450x3100
1620x3250
1870x3600
Temperature Control Accuracy of Developer Liquid
500KG
600KG
700KG
800KG

*Specifications subject to change without notice
